Baudouin Professional diesel Generator 640kw 800kva Silent Generador Electrico diesel Electric Generator Group Electrogene

1
MOQ
Baudouin Professional diesel Generator 640kw 800kva Silent Generador Electrico diesel Electric Generator Group Electrogene
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Classificação de potência: 640kw
Potência nominal: 800 kVA
sistema de controle: Digital
Capacidade do tanque: 1472L
Fase: 3
Freqüência: 50/60Hz
Tipo: Silencioso/Aberto
Destacar:

Baudouin diesel generator 640kw

,

silent diesel generator 800kva

,

professional electric generator group

Informação básica
Lugar de origem: China
Marca: BAUDOUIN
Certificação: CE
Número do modelo: 12M26G900/5
Condições de Pagamento e Envio
Detalhes da embalagem: 415cm*155cm*255cm
Tempo de entrega: 5-8 dias úteis
Termos de pagamento: L/C, T/T
Descrição de produto

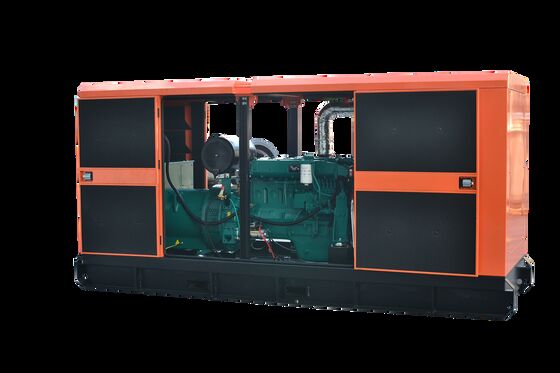

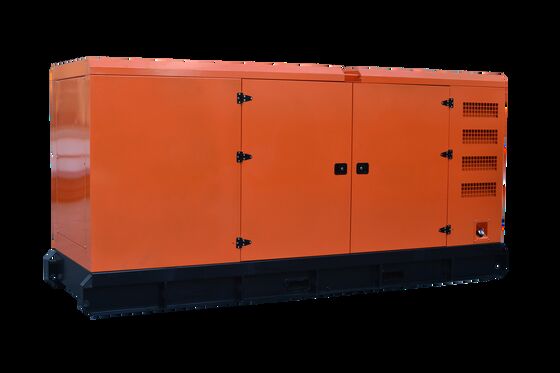

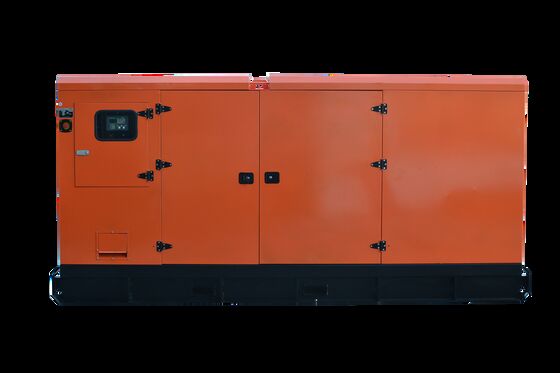

Baudouin Professional Diesel Generator 640kW 800kVA
Product Overview

Baudouin 640KW 800kVA Digital Panel Super Silent Diesel Genset - Model 12M26G900/5. A dependable power generator for industrial and commercial environments. We offer various power configurations that can be customized according to your needs.

  • Super Silent Diesel Genset Portable Diesel Generators
  • Available in 700KVA, 750KVA, 800KVA, 900KVA, 1000KVA configurations
  • Digital Panel with 50hz/60hz capability
  • Compatible with Baudouin, Perkins, Weichai, Yuchai, Deutz, Sdec engines
Baudouin Professional diesel Generator 640kw 800kva Silent Generador Electrico diesel Electric Generator Group Electrogene 0 Baudouin Professional diesel Generator 640kw 800kva Silent Generador Electrico diesel Electric Generator Group Electrogene 1
Please feel free to contact us!
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 800 880
Power Rating (kW) 640 704
Frequency (Hz) 50
Engine Model 12M26G900/5
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP - Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP - The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Baudouin Professional diesel Generator 640kw 800kva Silent Generador Electrico diesel Electric Generator Group Electrogene 2
Dimensions and Weight
Model BBDA880 (Open Type) BBDA880S (Silent Type)
Length (L) mm 4150 -
Width (W) mm 1550 2250
Height (H) mm 2550 3050
Tank Capacity (L) 1472 1472
Engine Specifications
Engine Model & Manufacturer 12M26G900/5 (BAUDOUIN)
Engine Model 12M26G900/5
N° of Cylinders / Valves 12 / 48
Cylinders Arrangement At Vee
Bore x Stroke (mm) 150 x 150
Displacement (L) 31.8
Thermodynamic Cycle Diesel 4 stroke
Mean Piston Speed (m/s) 7.5
BMEP @ ESP (Bar) 19.95
Cooling System Liquid (water + 50% antifreeze)
Injection System Direct
Fuel System Mechanical Pump
Aspiration Turbocharged and Aftercooled
Compression Ratio 15.7 : 1
Flywheel Housing SAE 0
Flywheel 18"
N° of Teeth on Flywheel Ring Gear 178
Inertia of Flywheel (kg•m²) 6.97
Inertia of Crankshaft (kg•m²) 2.58
Emission Standard N/A
Overall Dimensions with Radiator (Length x Width x Height) (mm) 3162 x 1748 x 2150
Engine Dry Weight without Radiator and Pipes (kg) 3175
Engine Dry Weight with Radiator and Pipes (kg) 3585
Engine Wet Weight with Radiator (includes oil, coolant) (kg) 3843
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-404E
Alternator Rated Power 640kw/800kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Company Profile

Established in 2004, Fujian Bobig Electric Machinery Co., Ltd. is an electrical machinery manufacturer specializing in technological research, production and sales. With a total factory area of 10,000 square meters, including 1,000sqm standard construction area, we have 160 employees, including 20 technicians.

Our main products include air-cooled gasoline generators, air-cooled diesel generators, air-cooled welding & generating sets and water-cooled diesel generator sets. Our small air-cooled brushless generators and welding & generating sets have earned a great reputation in the market for their reliable quality.

We adhere to the principle of "Quality, Creation, Service and Development", continuously updating technology, improving quality and providing better service. Our advanced testing equipment includes CAD system, auto assembling & winding & inserting equipment, vacuum dipping system and digital testing equipment.

We maintain strict quality control and have obtained ISO9000 Quality System Certification. We welcome you to build sincere cooperation with us.

Baudouin Professional diesel Generator 640kw 800kva Silent Generador Electrico diesel Electric Generator Group Electrogene 3 Baudouin Professional diesel Generator 640kw 800kva Silent Generador Electrico diesel Electric Generator Group Electrogene 4
After Sales Services

As a leading Chinese diesel generator manufacturer, we offer comprehensive export services to meet global market needs:

  • Customized manufacturing
  • Quality control
  • International logistics
  • Documentation and certification
  • Trade support
  • After-sales service
  • Customer training
  • Market support
  • Technical collaboration

We deliver tailored diesel generator solutions that meet international quality standards. Our experienced team handles all logistics to ensure timely delivery. We provide necessary documentation compliant with international trade requirements and offer after-sales support including technical assistance and spare parts supply.

Frequently Asked Questions
Are you a manufacturer or a trading company?

We are a professional manufacturer with our own factory located in Fujian, China. We welcome you to visit our facility and production line to see our quality control processes firsthand.

What is the minimum order quantity (MOQ)?

Our standard MOQ is 1 set. We are flexible and can discuss volume orders for larger projects to provide better pricing.

What is the delivery time after order confirmation?

Production time varies by quantity and inventory status. Typically 20-30 days for standard models. We'll provide a precise timeline upon order confirmation.

What payment terms do you offer?

We commonly accept T/T with 50% deposit and 50% balance before shipment. For established relationships, we can discuss other terms like L/C.

Do you perform factory inspection before shipment?

Absolutely. Every unit undergoes thorough testing in our factory before shipment.
