180KW/225KVA Power YTO Silent diesel Generator Set Automatic diesel Electric Generators for Home Use

1
MOQ
USD 4500-7200
preço
180KW/225KVA Power YTO Silent diesel Generator Set Automatic diesel Electric Generators for Home Use
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Destacar:

180KW silent diesel generator

,

automatic diesel generator for home

,

225KVA silent generator set
Informação básica
Lugar de origem: China
Marca: YTO
Número do modelo: YTO YM6H4L-D
Condições de Pagamento e Envio
Detalhes da embalagem: 340*125*175 centímetros
Tempo de entrega: 30 DIAS DE TRABALHO
Termos de pagamento: L/C, T/T, D/P
Habilidade da fonte: 500 unidades por mês
Descrição de produto
180KW/225KVA Power YTO Silent Diesel Generator Set
Product Overview

Our YTO YM6H4LF-D Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YTO engine, this 180kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.

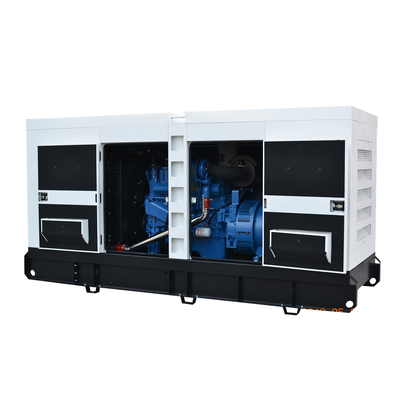

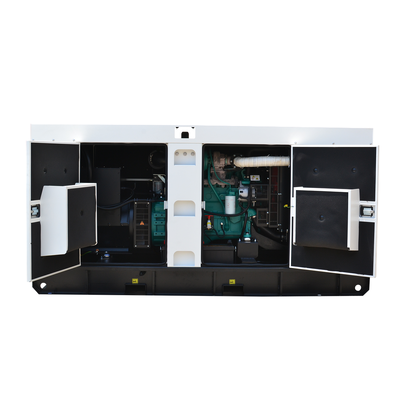

180KW/225KVA Power YTO Silent diesel Generator Set Automatic diesel Electric Generators for Home Use 0 180KW/225KVA Power YTO Silent diesel Generator Set Automatic diesel Electric Generators for Home Use 1
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 225 248
Power Rating (kW) 180 198
Frequency (Hz) 50
Engine Model YM6H4LF-D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP Prime Power: Available for an unlimited number of annual hours in variable load applications, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.

ESP Standby Power: Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
Model BYT248 (Open Type) BYT248S (Silent Type)
Length (L) mm 2600 3400
Width (W) mm 1000 1250
Height (H) mm 1850 1750
Tank Capacity (L) 414 414
Engine Specifications
Engine Model & Manufacturer YM6H4LF-D (YTO)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke, compression ignition
Method of Air Aspiration Turbocharged with Aftercooler
Cooling Medium Liquid
Bore 120 mm
Stroke 130 mm
Compression Ratio 17.0:1
Cubic Capacity 8.822 L
Dry Engine Weight 1000 kg
Dimension (L×W×H) 1233×1795×813 mm
Direction of Rotation Anti-clockwise viewed on flywheel
Governed Engine Speed 1500 RPM
Firing Order 1-5-3-6-2-4 (1cyl furthest from flywheel)
Standby Power 229 kW
Adaptive Power Station (kW) 206 kW
Steady State Speed Stability at Constant Load 3%
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274J
Alternator Rated Power 180kW/225kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Specific Fuel Consumption ≤203g/kW·h
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120

Auto start and auto mains failure control module (Alternator frequency & CAN speed sensing)

Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
180KW/225KVA Power YTO Silent diesel Generator Set Automatic diesel Electric Generators for Home Use 2
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen etc. controller
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
Additional Product Images
180KW/225KVA Power YTO Silent diesel Generator Set Automatic diesel Electric Generators for Home Use 3 180KW/225KVA Power YTO Silent diesel Generator Set Automatic diesel Electric Generators for Home Use 4 180KW/225KVA Power YTO Silent diesel Generator Set Automatic diesel Electric Generators for Home Use 5 180KW/225KVA Power YTO Silent diesel Generator Set Automatic diesel Electric Generators for Home Use 6
