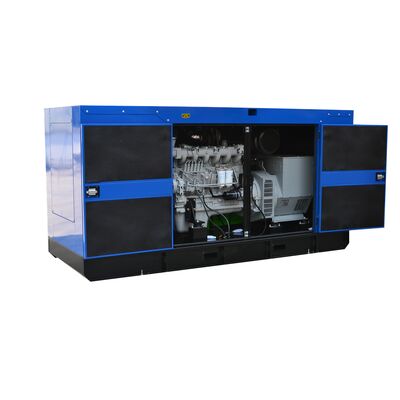

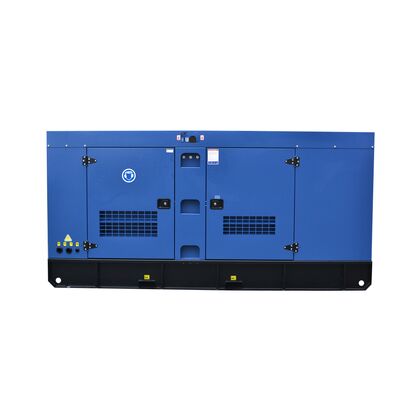

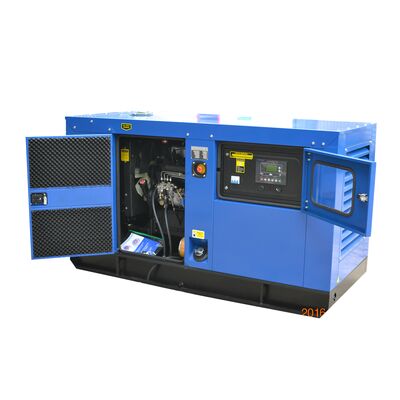

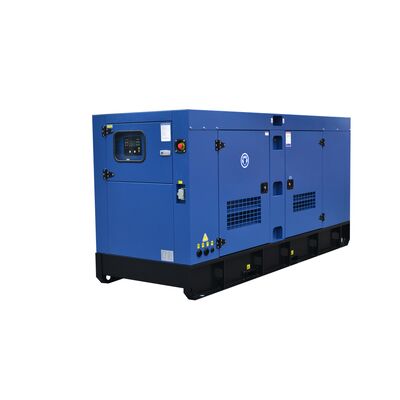

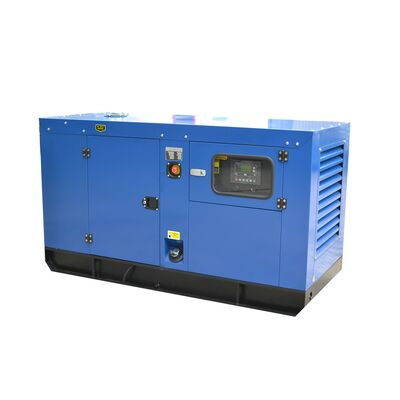

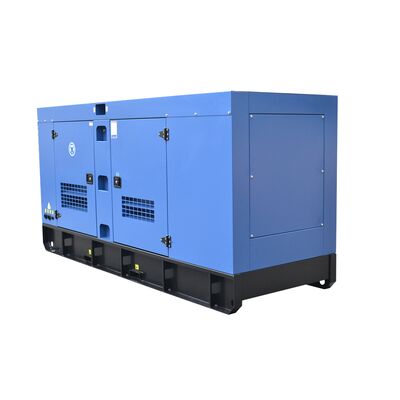

Customizable for YTO Engine Alternator Super Silent Diesel Generators with 280kw 350kva 400/230V Rated Voltage 50/60Hz

Customizable for YTO Engine Alternator Super Silent Diesel Generators with 280kw 350kva 400/230V Rated Voltage 50/60Hz
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Dossel: Personalizado
Garantia: 12 horas Months/1000
Tipo: Silencioso (silencioso super) ou aberto, silencioso, etc., In-line/6-Cylinder/4-Stroke/4-Valve/19L,
Painel de controle: Indicação digital do LCD, do alto mar, ComAp, do alto mar/ComAp/Harsen/Smartgen 6110, Smartgen
Tipo de saída: C.A. única/trifásica
Controlador: Do alto mar/Smartgen/etc.
Aplicação: Banco etc. de Indursty
Tensão nominal: 400/230V, 110-480V, 220V/380V, 110V/240V, 380V
ALTERNADOR: Maratona, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford ou Newtec, Engga
Nome do produto: Gerador diesel, gerador 350kva, alimentado por gerador diesel YTO, gerador diesel de energia de uso
Cor: Exigência dos clientes
Freqüência: 50/60Hz
Potência nominal: 350kVA
motor: YTO original
Método de resfriamento: Sistema de refrigeração por água
Destacar:

YTO engine silent diesel generator

,

280kw super silent diesel generator

,

350kva diesel generator with warranty
Informação básica
Lugar de origem: China
Marca: YTO
Certificação: CE
Número do modelo: YM6S9L-DB
Condições de Pagamento e Envio
Detalhes da embalagem: Madeira compensada
Tempo de entrega: 30 dias
Habilidade da fonte: 500pcs por mês
Descrição de produto
Customizable YTO Engine Alternator Super Silent Diesel Generators - 280kW 350kva
Product Overview

Our 280kW 350KVA BOBIG YTO diesel generator (Model: YM6S9L-DB) is designed to provide reliable power for a wide range of applications. Backed by the YTO brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance

Rated Power: 280kW (350KVA) with stable and efficient prime power output ensuring continuous operation even under heavy loads. Frequency: Standard 50Hz operation suitable for most electrical equipment.

Engine Excellence

Powered by YM6S9L-DB YTO engine with advanced technology, high torque, fuel efficiency, and low emissions. Engine Speed: 1500 RPM for smooth, consistent power supply.

Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 350 385
Power Rating (kW) 280 308
Frequency (Hz) 50
Engine Model YM6S9L-DB
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Specifications
Parameter Specification
Engine Model & Manufacturer YM6S9L-DB (YTO)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke, compression ignition
Air Aspiration Turbocharged with air to air cooler
Cooling Medium Liquid
Bore 126 mm
Stroke 155 mm
Compression Ratio 17.0:1
Cubic Capacity 11.596 L
Dry Engine Weight 1100 kg
Alternator Specifications
Parameter Specification
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314ES
Rated Power 280kW/350kVA
Rated Voltage 230V/400V
Protection Grade IP23
Insulation Class H class
Dimensions & Weight
Model BYT385 (Open) BYT385S (Silent)
Length (mm) 3100 3860
Width (mm) 1050 1400
Height (mm) 2100 2000
Tank Capacity (L) 644 644
Product Superiority
Customizable for YTO Engine Alternator Super Silent Diesel Generators with 280kw 350kva 400/230V Rated Voltage 50/60Hz 0
Packaging & Shipping

Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.

Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Office buildings, shopping malls, and hotels
  • Residential Areas: Communities with unstable power grids
Warranty & Service

BOBIG products carry a one-year or 1000-hour warranty (whichever comes first). Professional after-sales service team available 24/7 for technical support and maintenance.

Why Choose Us
  • YTO brand reputation and trust
  • Strict quality assurance and international standards compliance
  • Customization options for specific requirements
Frequently Asked Questions
What is your MOQ, payment method, delivery time?

MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit.

Which port do you use for export?

Fuzhou port, Fujian province or as customer requested.
