Casa /Produtos/Geradores diesel de Cummins/Silent diesel Generator diesel for Sale Generator Open Frame 300kW 375KVA Batch Professional diesel Generators Set

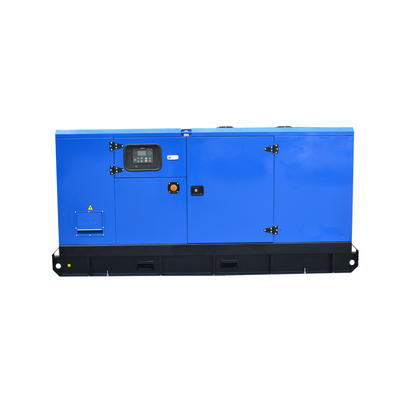

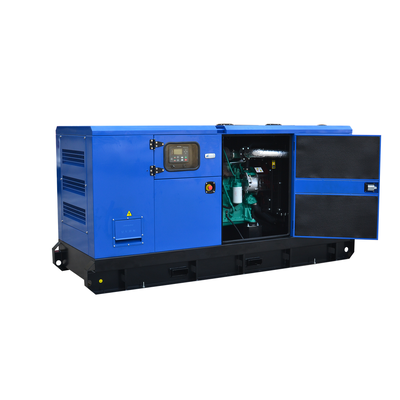

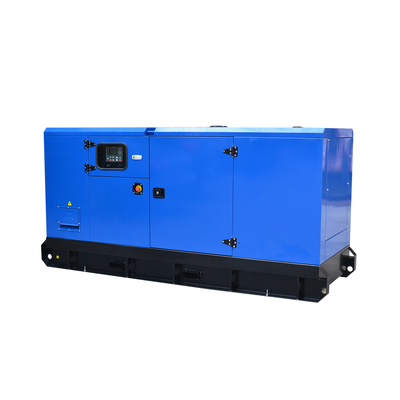

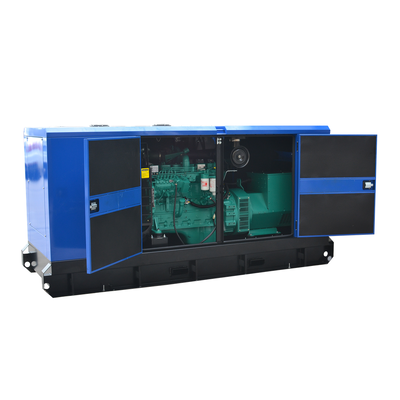

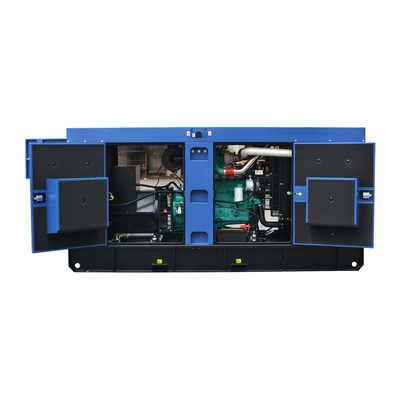

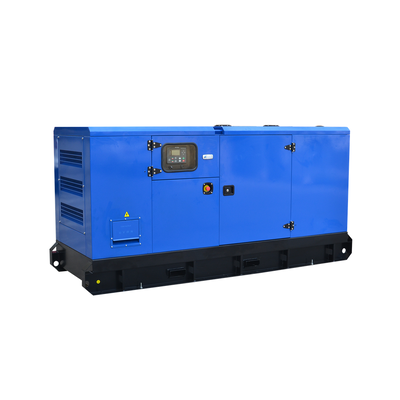

Silent diesel Generator diesel for Sale Generator Open Frame 300kW 375KVA Batch Professional diesel Generators Set

Silent diesel Generator diesel for Sale Generator Open Frame 300kW 375KVA Batch Professional diesel Generators Set
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Dossel: Personalizado
Garantia: 12 meses/1000 horas
tipo: Silencioso (super silencioso) ou aberto, silencioso, etc., em linha / 6 cilindros / 4 tempos / 4 vál
Painel de controle: Display Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Tipo de saída: CA monofásico/trifásico
Controlador: Deepsea/Smartgen/etc
Aplicativo: Banco Industy etc.
Tensão nominal: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternador: Maratona, Stamford, SLG/Stamford/Maratona/Meccatle/Leroy-somer, Stamford ou Newtec, Engga
Nome do produto: Gerador diesel, gerador 300kW, alimentado por gerador diesel CUMMIN S, gerador diesel de energia de
Cor: Exigência dos clientes
Freqüência: 50/60Hz
Potência nominal: 300 kW
Motor: CUMMIN S original
método de resfriamento: Sistema de refrigeração a água
Destacar:

Silent diesel generator 300kW

,

Open frame diesel generator 375KVA

,

Professional Cummins diesel generator set
Informação básica
Lugar de origem: China
Marca: CUMMIN S
Certificação: CE
Número do modelo: NTAA855-G7
Condições de Pagamento e Envio
Detalhes da embalagem: Envoltório de bolhas
Tempo de entrega: 30 dias
Habilidade da fonte: 500 unidades por mês
Descrição de produto
300kW 375KVA BOBIG CUMMIN S Diesel Generator

Model: NTAA855-G7 - Reliable Power Solution

Our 300kW 375KVA BOBIG CUMMIN S diesel generator is designed to provide reliable power for a wide range of industrial, commercial, and residential applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 300kW (375KVA) for stable and efficient operation
  • Standard frequency: 50Hz suitable for most electrical equipment
  • Prime power output ensures continuous operation under heavy loads
Engine Excellence
  • Engine Model: NTAA855-G7 CUMMIN S engine
  • Engine Speed: 1500 RPM for smooth, consistent power supply
  • High torque, fuel efficiency, and low emissions
  • Minimizes wear and tear on engine components
Technical Specifications
General InformationPrime PowerStandby Power
Rated Power (kVA)375413
Power Rating (kW)300330
Frequency (Hz)50
Engine ModelNTAA855-G7
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (customizable)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
Dimension and Weight
ModelBC413 (Open Type)BC413S (Silent Type)
Length (mm)33504200
Width (mm)13001580
Height (mm)20502100
Tank Capacity (L)690690
Engine Specifications
Engine Model & ManufacturerNTAA855-G7 (Cummins)
Number of Cylinders6
Cylinder ArrangementIn-line
CycleFour Stroke
AspirationTurbocharged & Aftercooled
Bore x Stroke140 x 152 mm
Displacement14 L
Compression Ratio14.0:1
Prime Power/Speed343 kW/1500 rpm
Standby Power/Speed381 kW/1500 rpm
Fuel SystemPT
Cooling SystemForce Water Cooling Cycle
Total Lubrication System Capacity36 L
Coolant Capacity (Engine Only)20.8 L
Fuel Consumption (100% Load)207 g/kWh @1500 rpm
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-314F
Alternator Rated Power300kW/375kVA
Rated Voltage230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Voltage Regulation, Steady State≤±1%
Environmental Adaptability
  • Ambient Temperature Range: +5°C to +40°C
  • Suitable for altitudes up to 1000m
  • Customized solutions available for different environmental conditions
Certifications & Standards

Our generator complies with multiple international standards including:

  • ISO 8528-5:2018
  • GB/T2820.5-2009
  • CE Certification
BOBIG Generator Certification 1 BOBIG Generator Certification 2
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for offices, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable grids
Customization & Services

We support customization and OEM services with design drawings.

All units are equipped with original power supplies and standard DSE 6120 controller.

Engine, generator, and controller options are available.

BOBIG Generator Controller
Warranty & After-Sales Service

BOBIG products come with a one-year or 1000-hour warranty (whichever comes first). During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we provide cost-effective spare parts maintenance.

Our professional after-sales service team is available 24/7 for technical support, maintenance, and repair services.

Why Choose BOBIG
  • Brand Reputation: Cummins is a trusted brand with a long history of quality products
  • Quality Assurance: Manufactured to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on specific requirements
Packaging & Shipping

Plywood case packaging, 10-15 working days after receiving customer deposit.
