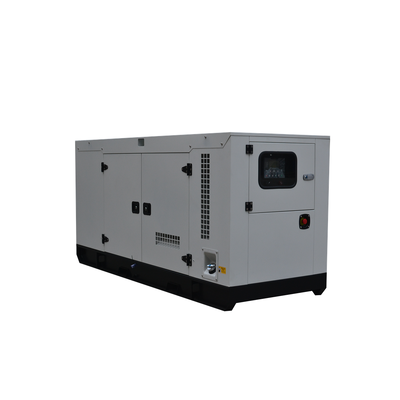

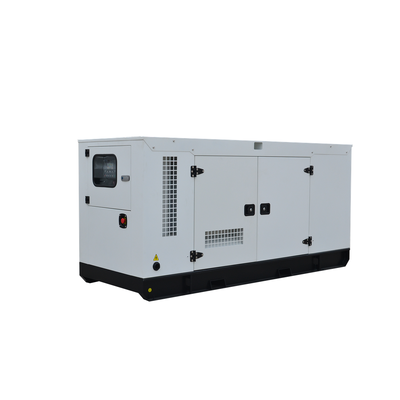

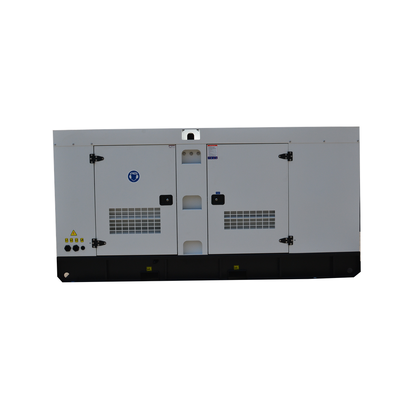

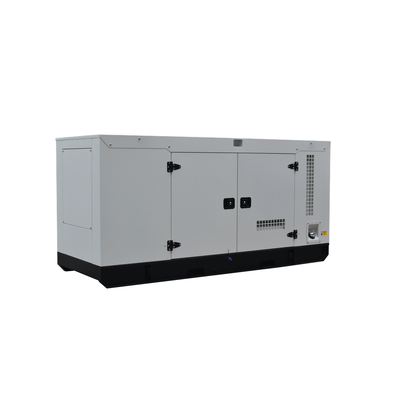

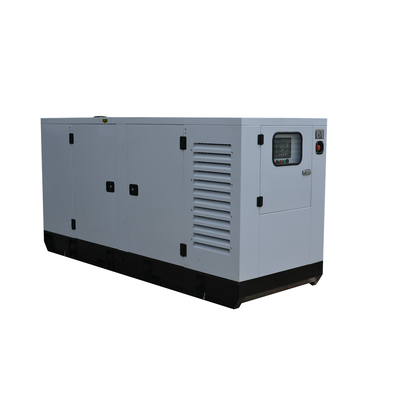

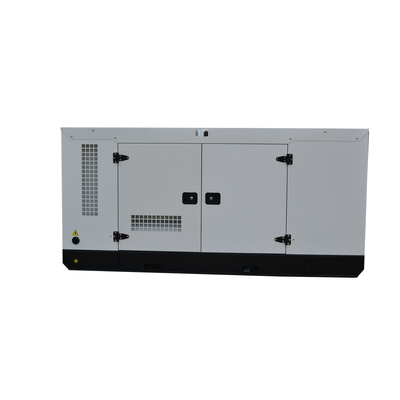

250kW 313KVA Power Generator 3 Phase Open/Silent Portable Diesel Generator for Home Small Power 3phase

250kW 313KVA Power Generator 3 Phase Open/Silent Portable Diesel Generator for Home Small Power 3phase
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Dossel: Personalizado
Garantia: 12 meses/1000 horas
tipo: Silencioso (super silencioso) ou aberto, silencioso, etc., em linha / 6 cilindros / 4 tempos / 4 vál
Painel de controle: Display Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Tipo de saída: CA monofásico/trifásico
Controlador: Deepsea/Smartgen/etc
Aplicativo: Banco Industy etc.
Tensão nominal: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternador: Maratona, Stamford, SLG/Stamford/Maratona/Meccatle/Leroy-somer, Stamford ou Newtec, Engga
Nome do produto: Gerador diesel, gerador 250kW, alimentado por gerador diesel CUMMIN S, gerador diesel de energia de
Cor: Exigência dos clientes
Freqüência: 50/60Hz
Potência nominal: 250kW
Motor: CUMMIN S original
método de resfriamento: Sistema de refrigeração a água
Destacar:

250kW diesel generator 3 phase

,

313KVA portable power generator

,

Cummins silent diesel generator
Informação básica
Lugar de origem: China
Marca: CUMMIN S
Certificação: CE
Número do modelo: NTA855-G1B
Condições de Pagamento e Envio
Detalhes da embalagem: Envoltório de bolhas
Tempo de entrega: 30 dias
Habilidade da fonte: 500 unidades por mês
Descrição de produto
250kW 313KVA Power Generator - 3 Phase Open/Silent Portable Diesel Generator
Product Overview

Our 250kW 313KVA BOBIG CUMMIN S diesel generator (Model: NTA855-G1B) delivers reliable power for industrial, commercial, and residential applications. Built with the renowned CUMMIN S engine, it offers high-quality performance and long-term durability.

Key Features
  • Power Performance: Rated at 250kW (313KVA) with stable prime power output
  • Frequency: Standard 50Hz operation suitable for most electrical equipment
  • Engine Excellence: NTA855-G1B CUMMIN S engine with high torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth, consistent power with minimal wear
Technical Specifications
General InformationPrime PowerStandby Power
Rated Power (kVA)313344
Power Rating (kW)250275
Frequency (Hz)50
Engine ModelNTA855-G1B
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (Customizable)
Fuel Tank Capacity≥ 8h @ 75% load
Dimensions & Weight
ModelBC344 (Open)BC344S (Silent)
Length (mm)30504200
Width (mm)11401500
Height (mm)18802100
Tank Capacity (L)575575
Engine Specifications
Engine Model & ManufacturerNTA855-G1B (Cummins)
Number of Cylinders6
Cylinder ArrangementIn-line
CycleFour Stroke
AspirationTurbocharged & Aftercooled
Bore x Stroke140 x 152 mm
Displacement14 L
Compression Ratio14.0:1
Prime Power/Speed284 kW/1500 rpm
Standby Power/Speed316 kW/1500 rpm
Fuel SystemPT
Cooling SystemForce Water Cooling Cycle
Alternator Details
Alternator BrandBOBIG
ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-314DS
Rated Power250kW/313kVA
Rated Voltage230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 W
Protection GradeIP23
Insulation ClassH class
Environmental Adaptability
  • Ambient Temperature: Operates effectively from +5°C to +40°C
  • Altitude: Suitable for use up to 1000m (custom solutions available for other conditions)
Certifications & Standards

Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications ensuring quality, safety, and reliability.

Product Certification 1 Product Certification 2
Applications
  • Industrial Use: Backup power for factories during outages
  • Commercial Buildings: Power for offices, malls, hotels - lighting, elevators, security systems
  • Residential Areas: Reliable power for communities with unstable grids
Customization & Services
  • Customization and OEM services available with design drawings
  • Standard DSE 6120 controller included (engine, generator, and controller options available)
  • One-year or 1000-hour warranty (whichever comes first)
  • 24/7 technical support, maintenance, and repair services
Generator Controller System
Packaging & Shipping

Plywood case packaging. Delivery within 10-15 working days after receiving deposit.

Generator Packaging Example 1 Generator Packaging Example 2
Why Choose BOBIG
  • Renowned Cummins engine brand with proven reliability
  • Strict quality control and international standard compliance
  • Customized solutions for specific requirements
  • Comprehensive after-sales support
