Super Silent Diesel Generator Set Powerd by 200kW 250KVA Water Cooled 3 Phase Power Genset for Sale Engine cummin

Super Silent Diesel Generator Set Powerd by 200kW 250KVA Water Cooled 3 Phase Power Genset for Sale Engine cummin
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Dossel: Personalizado
Garantia: 12 meses/1000 horas
tipo: Silencioso (super silencioso) ou aberto, silencioso, etc., em linha / 6 cilindros / 4 tempos / 4 vál
Painel de controle: Display Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Tipo de saída: CA monofásico/trifásico
Controlador: Deepsea/Smartgen/etc
Aplicativo: Banco Industy etc.
Tensão nominal: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternador: Maratona, Stamford, SLG/Stamford/Maratona/Meccatle/Leroy-somer, Stamford ou Newtec, Engga
Nome do produto: Gerador diesel, gerador 200kW, alimentado por gerador diesel CUMMIN S, gerador diesel de energia de
Cor: Exigência dos clientes
Freqüência: 50/60Hz
Potência nominal: 200 kW
Motor: CUMMIN S original
método de resfriamento: Sistema de refrigeração a água
Destacar:

200kW silent diesel generator

,

250KVA water cooled genset

,

Cummins 3 phase power generator
Informação básica
Lugar de origem: China
Marca: CUMMIN S
Certificação: CE
Número do modelo: Nt855-Ga
Condições de Pagamento e Envio
Detalhes da embalagem: Envoltório de bolhas
Tempo de entrega: 30 dias
Habilidade da fonte: 500 unidades por mês
Descrição de produto
200kW 250KVA BOBIG CUMMIN S Diesel Generator Set
Model: NT855-GA - Reliable Power Solution
Product Overview
Our 200kW 250KVA BOBIG CUMMIN S diesel generator (Model: NT855-GA) is engineered to deliver reliable power for diverse applications. Backed by the renowned CUMMIN S brand, it offers superior performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 200kW (250KVA) for industrial, commercial, and residential applications
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
  • Frequency: Standard 50Hz operation suitable for most electrical equipment
Engine Excellence
  • Engine Model: NT855-GA CUMMIN S engine with advanced technology
  • Performance: High torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth, consistent power supply
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 250 275
Power Rating (kW) 200 220
Frequency (Hz) 50
Engine Model NT855-GA
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model Type BC275 (Open) BC275S (Silent)
Length (mm) 3050 4200
Width (mm) 1140 1400
Height (mm) 1880 2120
Tank Capacity (L) 460 460
Engine Specifications
Engine Model & Manufacturer NT855-GA (Cummin s)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four stroke
Aspiration Turbocharged
Bore x Stroke 140 x 152 mm
Displacement 14 L
Compression Ratio 15.0:1
Prime Power/Speed 231 kW/1500 rpm
Standby Power/Speed 257 kW/1500 rpm
Speed Governor PT
Cooling System Force Water Cooling Cycle
Total Lubrication System Capacity 36 L
Coolant Capacity (engine only) 20.8 L
Fuel Consumption @ 100% load 192 g/kWh @1500 rpm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274K
Alternator Rated Power 200kw/250kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Environmental Adaptability
  • Ambient Temperature: Operational range of +5°C to +40°C
  • Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Compliance Standards
Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, ensuring quality, safety, and reliability.
Applications
This diesel generator is ideal for various applications:
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable power grids
Customization & Services
  • Customization and OEM services available with design drawings
  • Standard DSE 6120 controller included (engine, generator, and controller options available)
  • One-year or 1000-hour warranty (whichever comes first)
  • 24/7 technical support, maintenance, and repair services

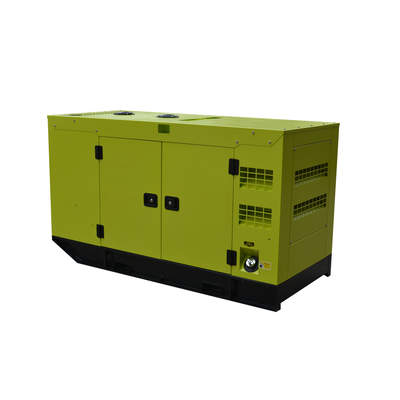

Product Image
Super Silent Diesel Generator Set Powerd by 200kW 250KVA Water Cooled 3 Phase Power Genset for Sale Engine cummin 0
Certifications
Super Silent Diesel Generator Set Powerd by 200kW 250KVA Water Cooled 3 Phase Power Genset for Sale Engine cummin 1 Super Silent Diesel Generator Set Powerd by 200kW 250KVA Water Cooled 3 Phase Power Genset for Sale Engine cummin 2
Why Choose BOBIG
  • Brand Reputation: CUMMIN S is a trusted brand with long-standing quality heritage
  • Quality Assurance: Strict adherence to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on specific requirements
  • Comprehensive Support: Professional after-sales service and technical assistance
