Casa /Produtos/Gerador diesel de Fawde/POWER Intelligent diesel Generator 100kva 80kw Open Type Silent diesel Electric Power Make Generator 80kw Silentcanopy Set

POWER Intelligent diesel Generator 100kva 80kw Open Type Silent diesel Electric Power Make Generator 80kw Silentcanopy Set

POWER Intelligent diesel Generator 100kva 80kw Open Type Silent diesel Electric Power Make Generator 80kw Silentcanopy Set
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Garantia: personalizado
Tipo: Silencioso (super silencioso) ou aberto, silencioso, etc., em linha / 6 cilindros / 4 tempos / 4 vál
Painel de controle: Display Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Tipo de saída: CA monofásico/trifásico
Controlador: Deepsea/Smartgen/etc
Aplicativo: Banco Industy etc.
Tensão nominal: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternador: Maratona, Stamford, SLG/Stamford/Maratona/Meccatle/Leroy-somer, Stamford ou Newtec, Engga
Nome do produto: Gerador diesel, gerador 100kva, alimentado por gerador diesel FAWDE, gerador diesel de energia de us
Cor: Exigência dos clientes
Freqüência: 50/60Hz
Potência nominal: 100 kVA
Motor: Fawde original
método de resfriamento: Sistema de refrigeração a água
Destacar:

100kva silent diesel generator

,

80kw open type power generator

,

intelligent diesel generator with warranty
Informação básica
Lugar de origem: China
Marca: FAWDE
Certificação: CE
Número do modelo: CA6F2D - 14D
Condições de Pagamento e Envio
Detalhes da embalagem: madeira compensada
Tempo de entrega: 30 dias
Habilidade da fonte: 500 unidades por mês
Descrição de produto
80kW 100KVA BOBIG FAWDE Diesel Generator (Model: CA6F2D-14D)

Our 80kW 100KVA BOBIG FAWDE diesel generator (Model: CA6F2D-14D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance: Rated power of 80kW (100KVA) with stable and efficient prime power output
Engine Excellence: Powered by CA6F2D-14D FAWDE engine with high torque, fuel efficiency, and low emissions
Standard Frequency: Operates at 50Hz, suitable for most electrical equipment
Engine Speed: 1500 RPM for smooth and consistent power supply
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 100 110
Power Rating (kW) 80 88
Frequency (Hz) 50
Engine Model CA6DF2D-14D-YFD10W
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Specifications Details
Engine Model & Manufacturer CA6DF2D-14D-YFD10W (FAWDE)
Engine Model CA6F2D-14D
No. of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke
Aspiration Turbocharged
Cooling System Water-cooled
Bore 110 mm
Stroke 115 mm
Compression Ratio 17.5:1
Displacement 6.56 L
Dry Engine Weight 700 kg
Dimension (L*W*H) 1310*721*995
Alternator Specifications Details
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274C
Alternator Rated Power 80kw/100kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Dimension and Weight Open Type (BFA110S) Silent Type
Length (L) mm 2200 3000
Width (W) mm 900 1040
Height (H) mm 1500 1420
Tank Capacity (L) 184 184
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels to maintain essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service

BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality issues.

Quality Standards

Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, guaranteeing quality, safety, and reliability.

Environmental Adaptability
  • Ambient Temperature: Operates effectively from +5°C to +40°C
  • Altitude: Suitable for use up to 1000m (customized solutions available for different conditions)

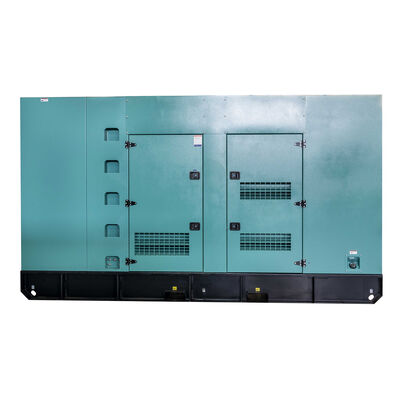

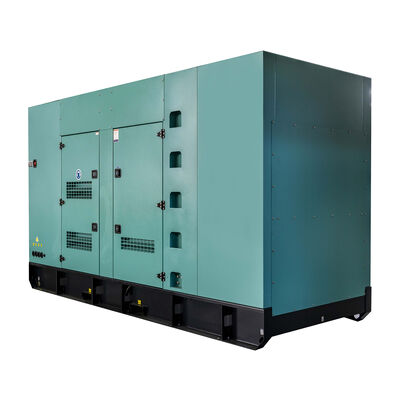

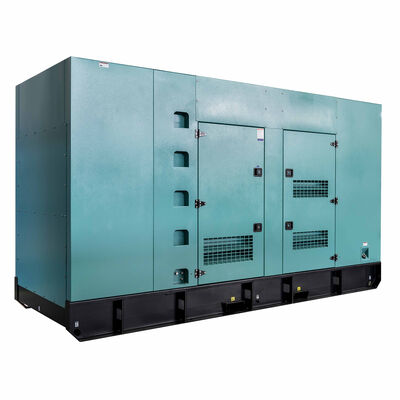

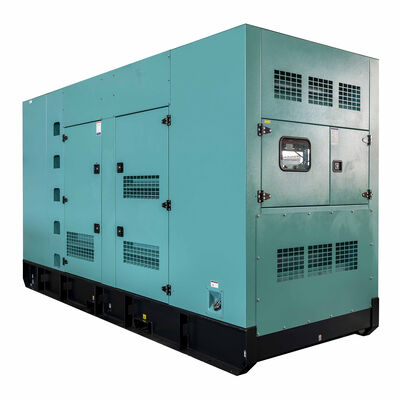

Product Image
POWER Intelligent diesel Generator 100kva 80kw Open Type Silent diesel Electric Power Make Generator 80kw Silentcanopy Set 0
Packaging & Shipping

Plywood case, 10-15 working days after receiving customer deposit.

Frequently Asked Questions
What is your MOQ, payment method, delivery time?

MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit.

Which port do you use for export?

Fuzhou port, Fujian province or as customer request.

Do you provide spare parts?

Yes, we provide regular engine filters for self-maintenance and can supply parts anytime within 3-5 days.

Can you customize voltage, frequency, and other specifications?

Yes, voltage, frequency, tank capacity, phase, and color can be customized according to your needs.
