High-Quality Portable 440kW 550KVA Silent Diesel Generator Set Genset 550KVA Soundproof Power Diesel Generator

High-Quality Portable 440kW 550KVA Silent Diesel Generator Set Genset 550KVA Soundproof Power Diesel Generator
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Dossel: Personalizado
Garantia: 12 meses/1000 horas
Tipo: Silencioso (super silencioso) ou aberto, silencioso, etc., em linha / 6 cilindros / 4 tempos / 4 vál
Painel de controle: Display Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Tipo de saída: CA monofásico/trifásico
Controlador: Deepsea/Smartgen/etc
aplicativo: Banco Industy etc.
Tensão nominal: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternador: Maratona, Stamford, SLG/Stamford/Maratona/Meccatle/Leroy-somer, Stamford ou Newtec, Engga
Nome do produto: Geradores a diesel PERKINS 440kW 550KVA personalizáveis, para uso doméstico, uso industrial, uso hos
Cor: Exigência dos clientes
Freqüência: 50/60Hz
Potência nominal: 550KVA
Motor: Perkins original
método de resfriamento: Sistema de refrigeração a água
Destacar:

440kW silent diesel generator

,

550KVA soundproof genset

,

Perkins portable diesel generator
Informação básica
Lugar de origem: China
Marca: PERKINS
Certificação: CE
Número do modelo: 2806C - E18TAG1A
Condições de Pagamento e Envio
Detalhes da embalagem: madeira compensada
Tempo de entrega: 30 dias
Habilidade da fonte: 500 unidades por mês
Descrição de produto

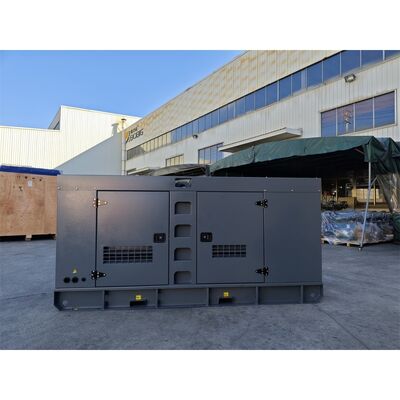

High-Quality Portable 440kW 550KVA Silent Diesel Generator Set
Product Overview

Our 440kW 550KVA BOBIG PERKINS diesel generator (Model: 2806C-E18TAG1A) is designed to provide reliable power for a wide range of applications. Backed by the renowned PERKINS brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 440kW (550KVA) for various industrial, commercial, and residential applications
  • Frequency: 50Hz standard frequency suitable for most electrical equipment
  • Stable Output: Continuous operation even under heavy loads
Engine Excellence
  • Engine Model: 2806C-E18TAG1A PERKINS engine
  • Engine Speed: 1500 RPM for smooth and consistent power supply
  • Advanced Technology: High torque, fuel efficiency, and low emissions
Technical Specifications
General Information
Parameter Prime Power Standby Power
Rated Power (kVA) 550 605
Power Rating (kW) 440 484
Frequency (Hz) 50
Engine Model 2806C-E18TAG1A
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity ≥ 8h @ 75% load
Dimensions and Weight
Model BP605 (Open Type) BP605S (Silent Type)
Length (mm) 3600 4500
Width (mm) 1500 1810
Height (mm) 2460 2360
Tank Capacity (L) 1012 1012
Engine Specifications
Engine Model & Manufacturer 2806C-E18TAG1A (PERKINS)
Number of Cylinders 6
Cylinder Arrangement Vertical inline
Cycle Four stroke
Aspiration Turbocharged, air-to-air charge cooling
Bore x Stroke 145 x 183 mm
Cubic Capacity 18.13 L
Compression Ratio 14.5:1
Prime Power/Speed 532 kW/1500 rpm
Standby Power/Speed 568 kW/1500 rpm
Cooling System Force Water Cooling Cycle
Lubrication System Capacity 45 L
Coolant Capacity 62 L
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354DS
Rated Power 440kW/550kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Protection Grade IP23
Insulation Class H class
Voltage Regulation ≤±1% (Steady State)
Certifications & Standards

Our generator complies with multiple international and national standards, including:

  • ISO 8528-5:2018
  • GB/T2820.5-2009
  • CE Certification
High-Quality Portable 440kW 550KVA Silent Diesel Generator Set Genset 550KVA Soundproof Power Diesel Generator 0 High-Quality Portable 440kW 550KVA Silent Diesel Generator Set Genset 550KVA Soundproof Power Diesel Generator 1
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C operating range
  • Altitude: Suitable for use up to 1000m
  • Custom Solutions: Available for different environmental conditions
Customization & Options

We support customization and OEM services with design drawings. All units come with standard DSE 6120 controller, with optional engines, generators, and controllers available.

Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable grids
Warranty & Service

BOBIG products come with a one-year or 1000-hour warranty (whichever comes first). During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we offer cost-based spare parts maintenance with 24/7 technical support.

Packaging & Shipping

Plywood case packaging with delivery within 10-15 working days after receiving customer deposit.

Frequently Asked Questions
What is your MOQ, payment method, and delivery time?
MOQ is 1 set. Payment methods include 30% T/T deposit with 70% balance before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery time is 10-15 working days after receiving deposit.
Which port do you use for export?
Fuzhou port, Fujian province or as per customer request.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters (air, water, fuel, oil) for self-maintenance and can supply parts anytime within 3-5 days.
Can you customize voltage, frequency, tank capacity, phase, and color?
Yes, all specifications can be customized according to your requirements.
What is your distribution policy?
We welcome distributors worldwide and can issue authority certificates and sign agreements accordingly.
