Efficient YANMAR 4TNV98-GGE 24kw Diesel Generator Low Fuel Consumption

1
MOQ
USD 300-860
preço
Efficient YANMAR 4TNV98-GGE 24kw Diesel Generator Low Fuel Consumption
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Destacar:

Yanmar 4TNV98 diesel generator

,

24kw diesel generator low fuel

,

Yanmar diesel generator with warranty
Informação básica
Lugar de origem: China
Marca: YANMAR
Número do modelo: YANMAR 4TNV98-GGE
Condições de Pagamento e Envio
Detalhes da embalagem: 210*85*107cm
Tempo de entrega: 30 DIAS DE TRABALHO
Termos de pagamento: L/C, T/T, D/P
Habilidade da fonte: 500pcs por mês
Descrição de produto
Efficient YANMAR 4TNV98-GGE 24kw Diesel Generator Low Fuel Consumption

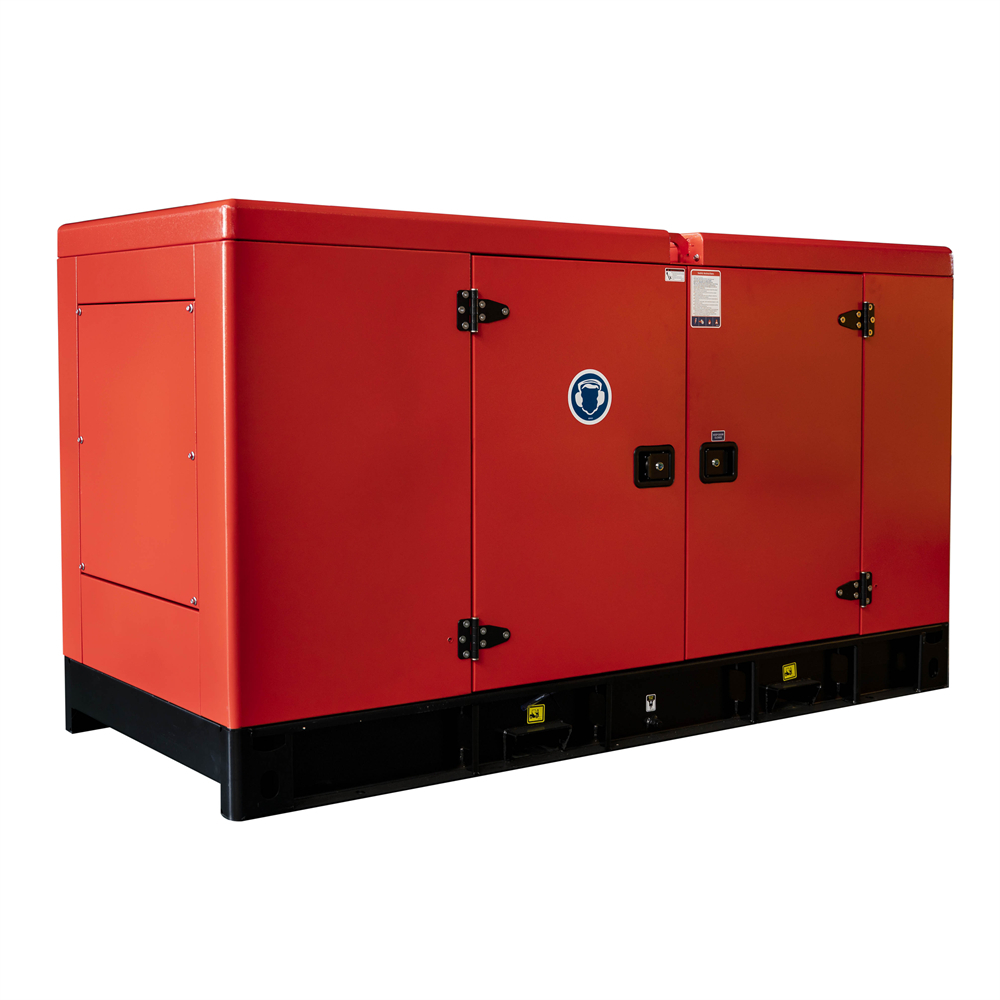

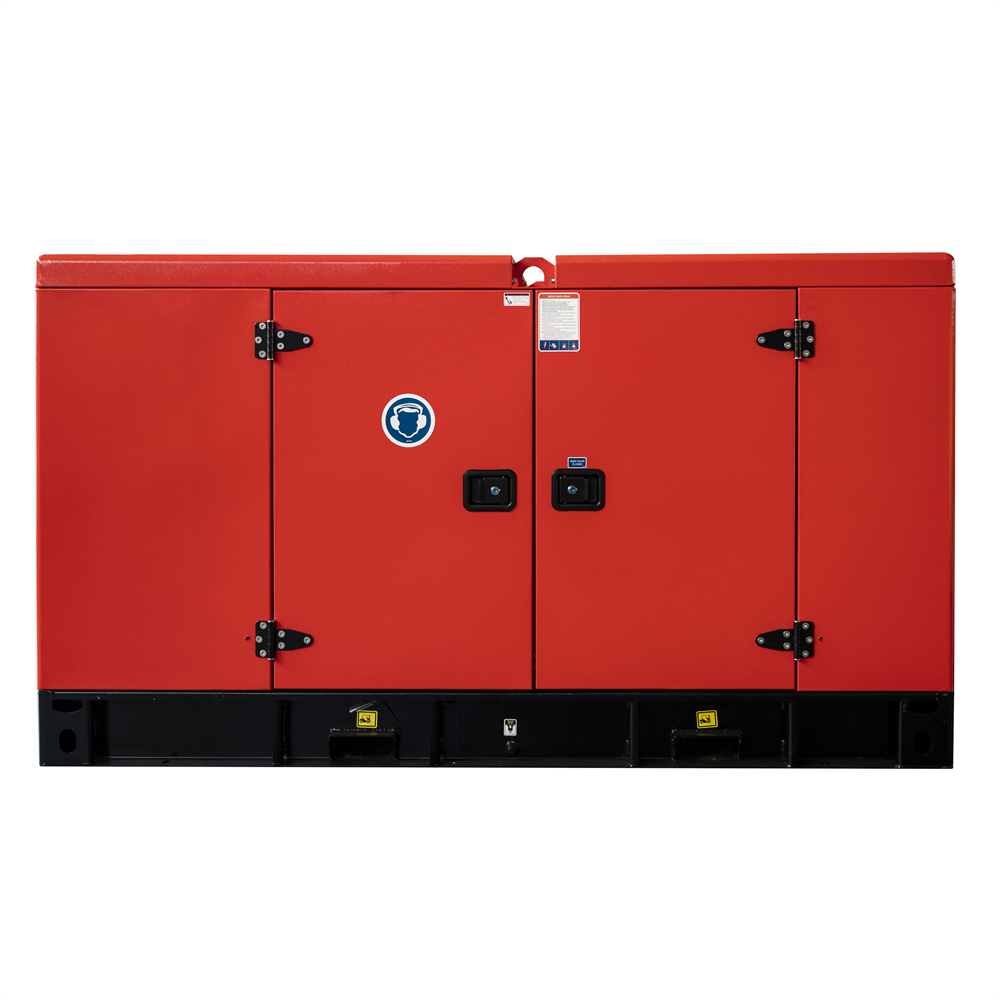

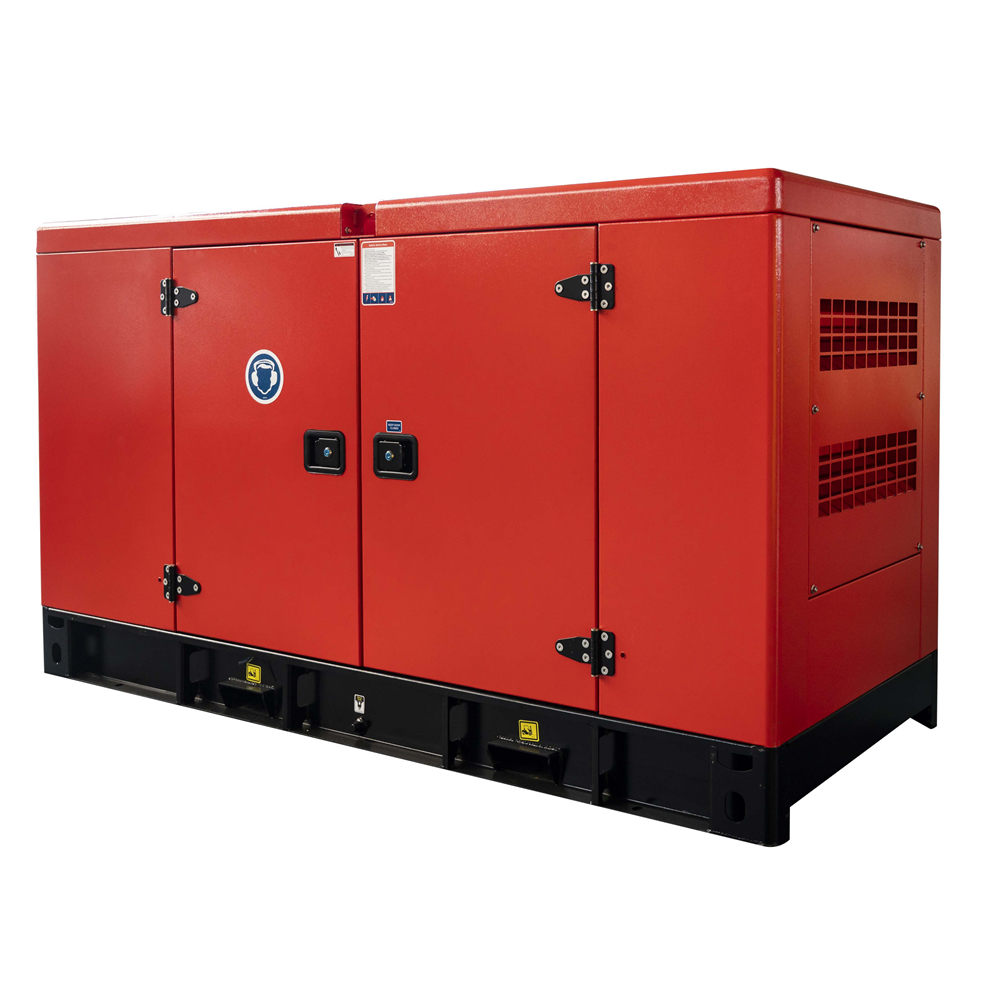

Our YANMAR 4TNV98-GGE Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANMAR engine, this 24kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.
Efficient YANMAR 4TNV98-GGE 24kw Diesel Generator Low Fuel Consumption 0Efficient YANMAR 4TNV98-GGE 24kw Diesel Generator Low Fuel Consumption 1
General Specifications
SpecificationPrime PowerStandby Power
Rated Power (kVA)3033
Power Rating (kW)2426
Frequency (Hz)50
Engine Model4TNV98-GGE
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
ModelBYN33 (Open Type)BYN33S (Silent Type)
Length (mm)15502100
Width (mm)610850
Height (mm)12201070
Tank Capacity (L)5555
Engine Specifications
Engine Model & Manufacturer4TNV98-GGE (YANMAR)
Engine Type4 cycle, Inline, Water-cooled Diesel
Number of Cylinders - Bore × Stroke (mm)4 - φ98×110
Combustion SystemDirect Injection
Compression Ratio18.5
Displacement (liter)3.319
Rated Output kW(PS)/min⁻¹34.1(46.4)/1500 - 40.8(55.5)/1800
Continuous Rating kW(PS)/min⁻¹30.7(41.7)/1500 - 36.4(49.5)/1800
Specific Fuel Consumption g/kW-h(g/PS-h)231(170) (at rated output)
Ambient Condition25℃, 750mmHg, 30%
Engine Speed at No Load Max./Min. (min⁻¹)1925(+25/-25) / 1200(+25/-25)
Governor TypeCentrifugal-all speed governor
Firing Order1-3-4-2-1 (order from F.W.)
Direction of RotationCounterclockwise (viewed from F.W.)
Engine Dry Weight (kg)approx. 248
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-184G
Alternator Rated Power24kW/30kVA
Rated Voltage (V)230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 Wire
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%～+20%

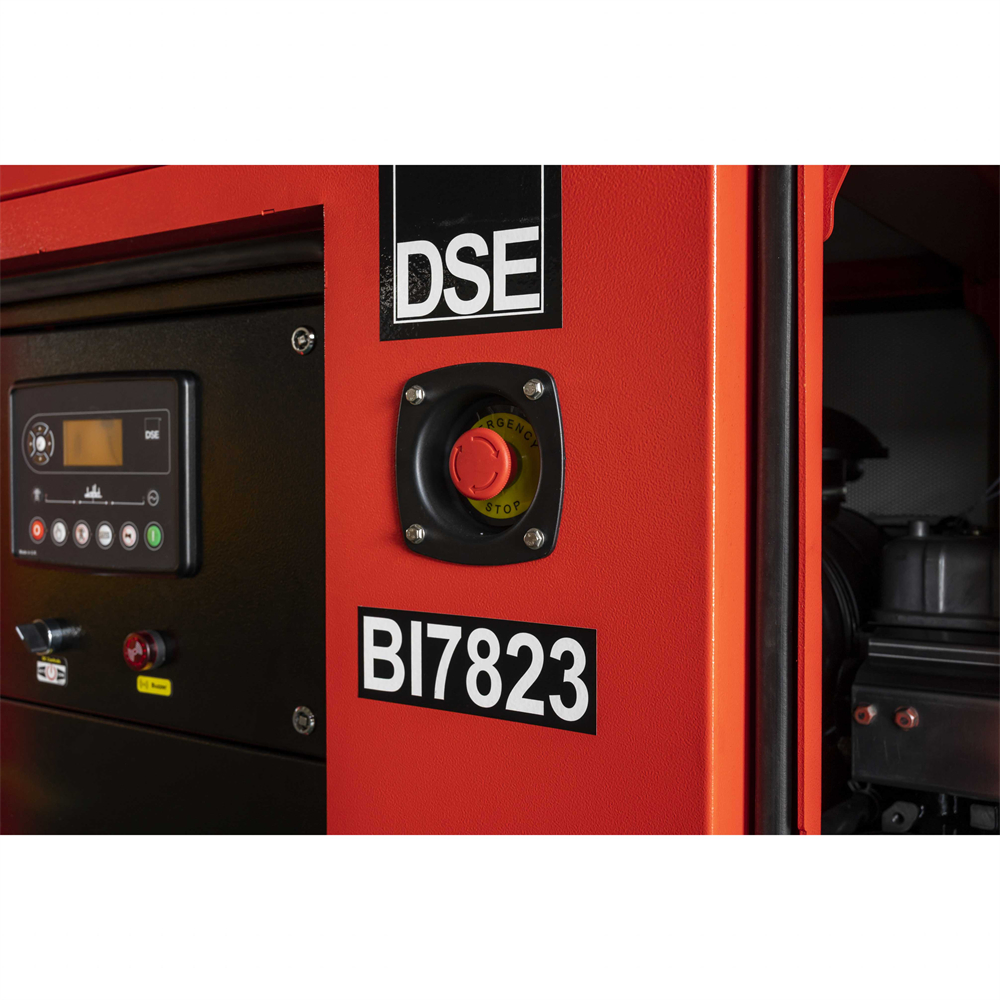

Control Panel - DSE 6120
Efficient YANMAR 4TNV98-GGE 24kw Diesel Generator Low Fuel Consumption 2
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
EngineAlternatorFuel System
Water Jacket PreheaterPMG excitation12 / 24 hour base tank
Oil PreheaterSpace heaterBunded fuel tank
Oil manual pumpWinding temperature measuringExternal fuel tank
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
Efficient YANMAR 4TNV98-GGE 24kw Diesel Generator Low Fuel Consumption 3Efficient YANMAR 4TNV98-GGE 24kw Diesel Generator Low Fuel Consumption 4
