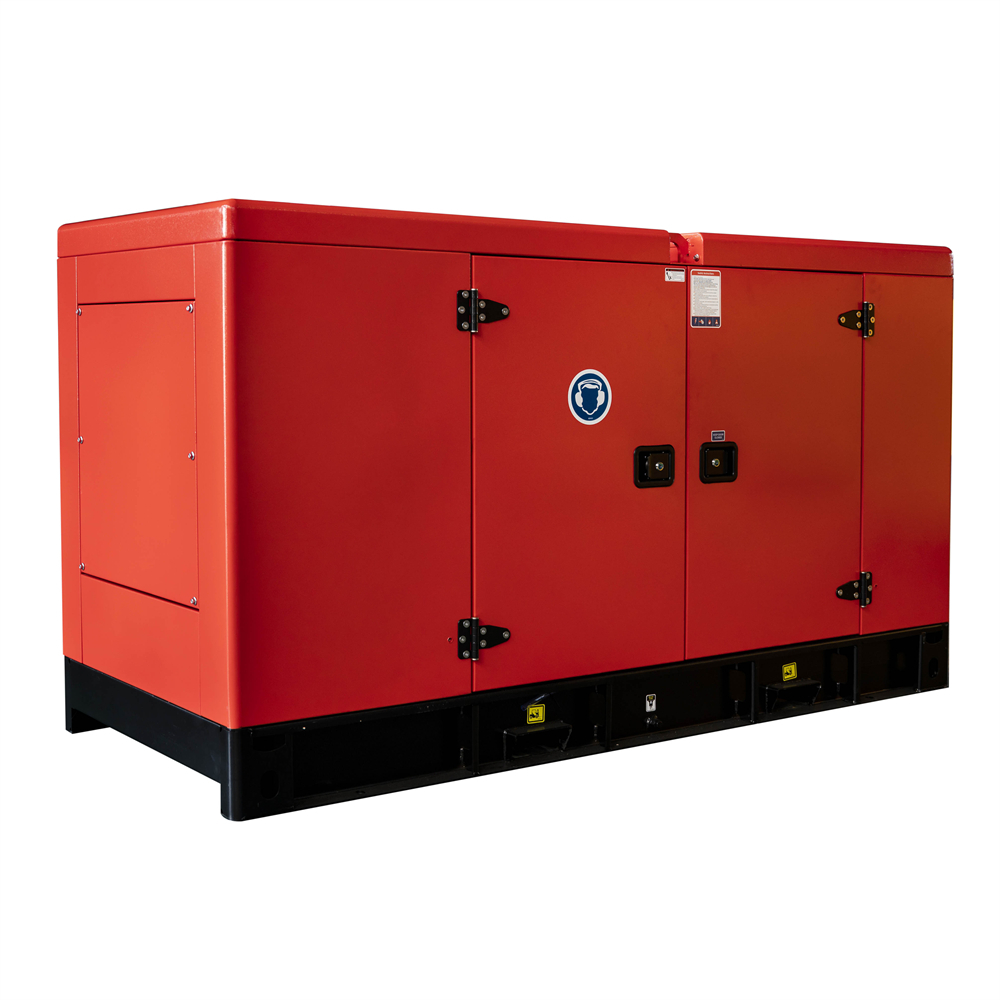

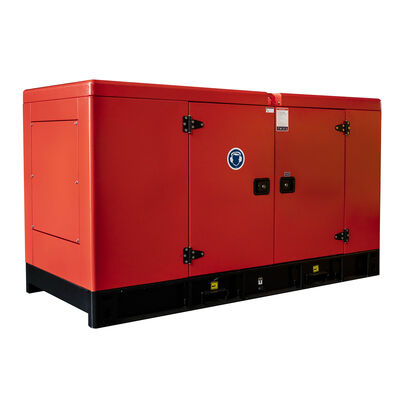

Compact Yanmar 4TNV88-GGE 20kw Silent Diesel Generator

1
MOQ
USD 300-860
preço
Compact Yanmar 4TNV88-GGE 20kw Silent Diesel Generator
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Destacar:

Yanmar 4TNV88 diesel generator

,

20kw silent diesel generator

,

compact Yanmar diesel generator
Informação básica
Lugar de origem: China
Marca: YANMAR
Número do modelo: YANMAR 4TNV88-GGE
Condições de Pagamento e Envio
Detalhes da embalagem: 190*85*105cm
Tempo de entrega: 30 DIAS DE TRABALHO
Termos de pagamento: L/C, T/T, D/P
Habilidade da fonte: 500pcs por mês
Descrição de produto
Compact Yanmar 4TNV88-GGE 20kw Silent Diesel Generator

The BOBIG 4TNV88-GGE Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned BOBIG engine, this 12kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

Compact Yanmar 4TNV88-GGE 20kw Silent Diesel Generator 0 Compact Yanmar 4TNV88-GGE 20kw Silent Diesel Generator 1
General Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 15 17
Power Rating (kW) 12 13
Frequency (Hz) 50
Engine Model 4TNV88-GGE
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.

ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
Model BYN17 (Open Type) BYN17S (Silent Type)
Length (L) mm 1400 1900
Width (W) mm 610 850
Height (H) mm 1130 1050
Tank Capacity (L) 28 28
Engine Specifications
Engine Model & Manufacturer 4TNV88-GGE (YANMAR)
Engine Type 4 cycle, Inline, Water-cooled Diesel
Number of Cylinders - Bore×Stroke (mm) 4 - φ88×90
Combustion System Direct Injection
Compression Ratio 19.1
Displacement (liter) 2.19
Rated Output kW(PS)/min⁻¹ 17.7(24.1)/1500 - 21.6(29.4)/1800
Continuous Rating kW(PS)/min⁻¹ 16.4(22.3)/1500 - 19.6(26.6)/1800
Specific Fuel Consumption g/kW-h(g/PS-h) 245(180) (at rated output)
Ambient Condition 25℃, 750mmHg, 30%
Engine Speed at No Load Max/Min (min⁻¹) 1925(+25/-25) / 1200(+25/-25)
Governor Type Centrifugal-all speed governor
Firing Order 1-3-4-2-1 (order from F.W.)
Direction of Rotation Counter clockwise (viewed from F.W.)
Engine Dry Weight (kg) approx. 170
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-164D
Alternator Rated Power 12kw/15kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 Wire
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%

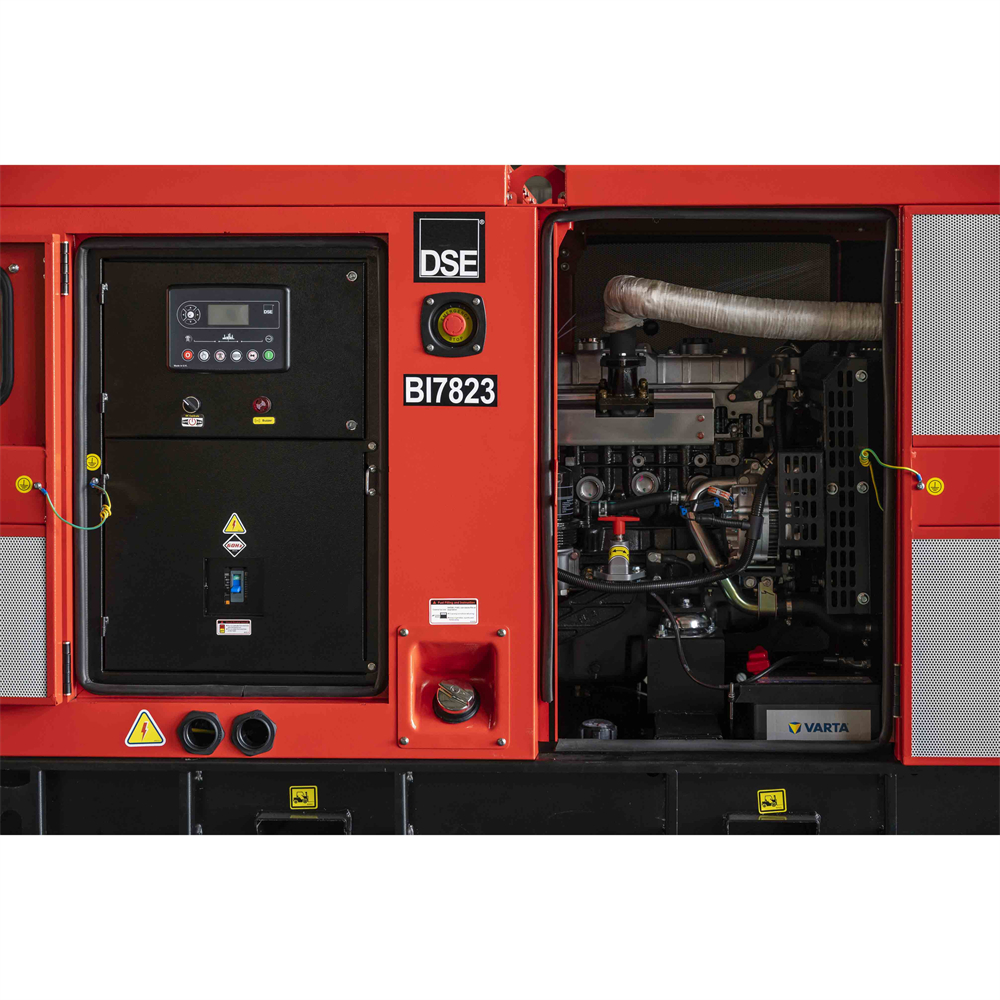

Control Panel - DSE 6120

Auto start and auto mains failure control module (Alternator frequency & can speed sensing)

Compact Yanmar 4TNV88-GGE 20kw Silent Diesel Generator 2
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine
  • Water Jacket Preheater
  • Oil Preheater
  • Oil manual pump
Alternator
  • PMG excitation
  • Space heater
  • Winding temperature measuring
Fuel System
  • 12 / 24 hour base tank
  • Bunded fuel tank
  • External fuel tank
  • Automatic fuel feeding
  • Switch between external tank and base tank (three-way valve)
Generating Set
  • Deepsea, ComAp, Smartgen etc. controller
  • Trailer
  • Tools with the machine
Compact Yanmar 4TNV88-GGE 20kw Silent Diesel Generator 3 Compact Yanmar 4TNV88-GGE 20kw Silent Diesel Generator 4
