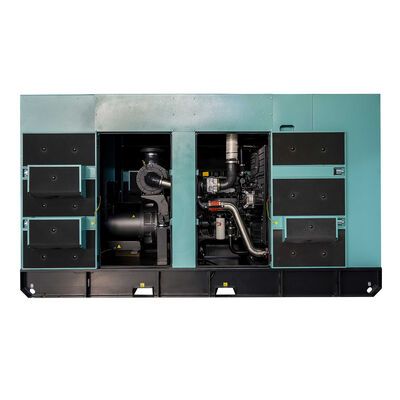

270kW 338KVA BOBIG FAWDE Diesel Generator
Model: CA6DM2J - 41D - Reliable Power Solution
Our 270kW 338KVA BOBIG FAWDE diesel generator is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 270kW (338KVA) to meet various industrial, commercial, and residential power needs. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads.
Frequency: Operates at standard 50Hz, suitable for most electrical equipment.
Engine Excellence
Engine Model: CA6DM2J - 41D FAWDE engine with advanced technology and high-quality manufacturing. Known for high torque, fuel efficiency, and low emissions.
Engine Speed: 1500 RPM for smooth, consistent power supply while minimizing wear and tear.
Applicable Standards
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications, guaranteeing quality, safety, and reliability.
Environmental Adaptability
Ambient Temperature: Operates effectively from +5°C to +40°C.
Altitude: Suitable for use up to 1000m. Customized solutions available for different environmental conditions.
Technical Specifications
General Information
| Parameter | Prime Power | Standby Power |
|---|
| Rated Power (kVA) | 338 | 371 |
| Power Rating (kW) | 270 | 297 |
| Frequency (Hz) | 50 |
| Engine Model | CA6DM2J-41D |
| Engine Speed (RPM) | 1500 |
| Phase | 3 |
| PF | 0.8 |

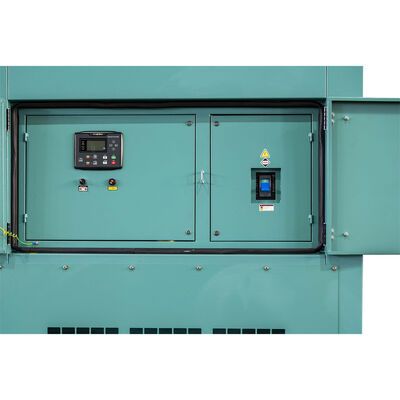

| Control System | Digital |
| Rated Voltage (V) | 400/230 (customizable) |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load |
PRP: Prime power available for unlimited annual hours in variable load applications per GB/T2820-97; 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating for emergency power during utility interruptions. No overload, utility parallel or negotiated outage operation capability.
Engine Specifications
| Engine Model & Manufacturer | CA6DM2J-41D (FAWDE) |
| Engine Model | CA6DM2J-41D |
| No. of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | 4 stroke |
| Aspiration | Turbocharged & Intercooled |
| Cooling System | Water-cooled |
| Bore | 123 mm |
| Stroke | 155 mm |
| Compression Ratio | 17.5:1 |
| Displacement | 11.05 L |
| Dry Engine Weight | 1050 kg |
| Dimension (L*W*H) | 1755*896*1192 |
| The Flywheel Shell Interface | SAE1-14'' |
| Governed Engine Speed | 1500 |
| Continuous Power without Fans | 300 |
| Standby Power | 330 |
| Adaptive Power Station (kW) | 270 |
| Average Effective Pressure | 2.17 |
Alternator Specifications
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314ES |
| Alternator Rated Power | 270kw/338kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
Dimensions and Weight

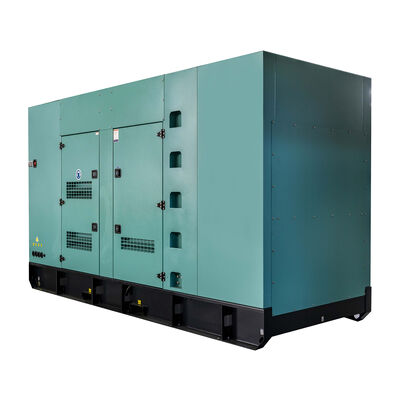

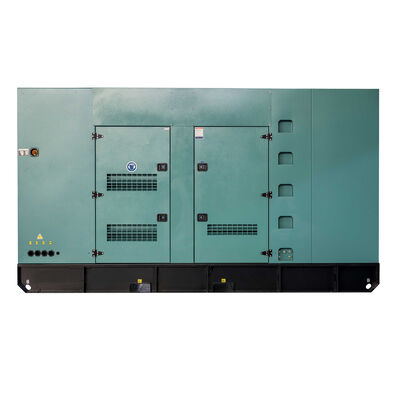

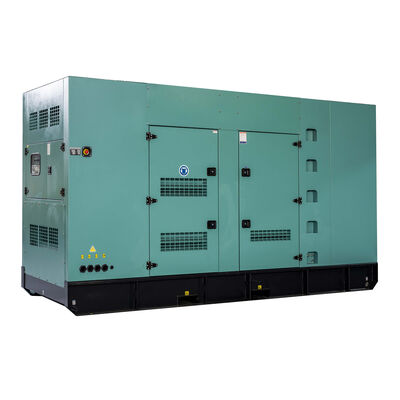

| Model | BFA371 (Open type) | BFA371S (Silent type) |
|---|
| Length (L) mm | 2900 | 3900 |
| Width (W) mm | 1250 | 1220 |
| Height (H) mm | 1800 | 1950 |
| Tank Capacity (L) | 621 | 621 |
Applications
- Industrial Use: Backup power for factories to ensure continuous production during outages
- Commercial Buildings: Office buildings, shopping malls, and hotels to maintain essential services
- Residential Areas: Reliable power for communities with unstable power grids
Warranty and After-Sales Service
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production quality or raw materials. After expiration, we provide cost-effective spare parts maintenance.
Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.
Why Choose Us
- Brand Reputation: FAWDE is a well-known and trusted brand in the diesel generator industry
- Quality Assurance: Products manufactured according to international standards with rigorous quality inspections
- Customization Options: Customized solutions available based on specific requirements
Company Information
We are an electrical machinery manufacturer integrating technological research, production, and sales. With a total factory area of 10,000 square meters (including 1,000sqm standard construction area), we employ 160 people with 20 technicians.
Main products include gasoline generators, diesel generators (5-2000kva), gas generators, pumps, etc. We have obtained ISO9000 Quality System Certification and maintain strict quality control.
Frequently Asked Questions
Q: What is your MOQ, payment method, delivery time?
A: MOQ is 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after receiving deposit.
Q: Which port do you use for export?
A: Fuzhou port, Fujian province or as customer request.
Q: Do you provide spare parts?
A: Yes, we provide regular engine filters for self-maintenance and can offer parts at any time.
Q: Can you customize voltage, frequency, tank capacity, phase and color?
A: Yes, all specifications can be customized according to your needs.
