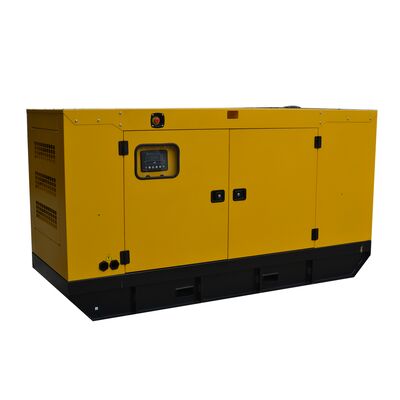

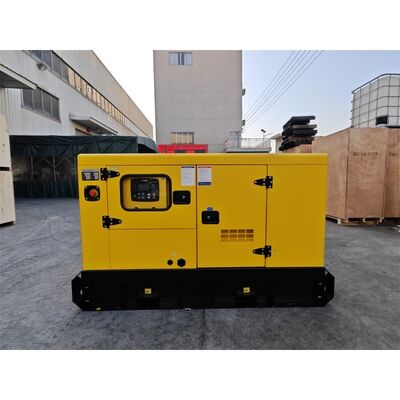

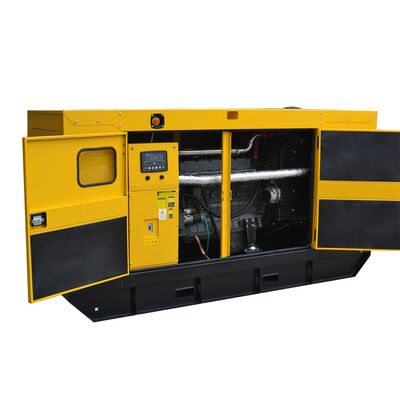

Our 64kW 80KVA BOBIG YANGDONG diesel generator (Model: Y4110ZLD) is designed to provide reliable power for a wide range of applications. Backed by the YANGDONG brand, it offers high-quality performance and long-term durability.
| Prime Power | Standby Power | |
|---|---|---|
| Rated Power (kVA) | 80 | 88 |
| Power Rating (kW) | 64 | 70 |
| Frequency (Hz) | 50 | |
| Engine Model | Y4110ZLD | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated voltage (V) | 400/230 | |
| Fuel tank capacity operating time | ≥ 8h @ 75% load | |
| Engine Model & Manufacturer | Y4110ZLD(YANGDONG) |
|---|---|
| No. of cylinders | 4 |
| Injection Type | Direct |
| Aspiration | Turbocharged |
| Configuration | Vertical |
| Bore | 110 mm |
| Stroke | 118 mm |
| Compression ratio | 18 |
| Displacement | 4.3 L |
| Dry engine weight | 370 kg |
| Dimension(L*W*H) | 892*618*740 |
| The Flywheel shell interface | SAE3 |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-224G |
| Alternator Rated Power | 64kw/80kva |
| Rated voltage (V) | 230v/400v |
| Rated frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Model | BY88 Open type | BY88S Silent type |
|---|---|---|
| Length (L) mm | 1850 | 2600 |
| Width (W) mm | 730 | 930 |
| Height (H) mm | 1350 | 1220 |
| Tank capacity (L) | 147 | 147 |
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by our production quality or raw material. After expiration, we provide cost spare parts maintenance.
We are an electrical machinery manufacturer with a total factory area of 10,000 square meters, including 1,000sqm standard construction area, with 160 employees (including 20 technicians). Our main products include gasoline generators, diesel generators 5-2000kva, gas generator, pumps etc.
